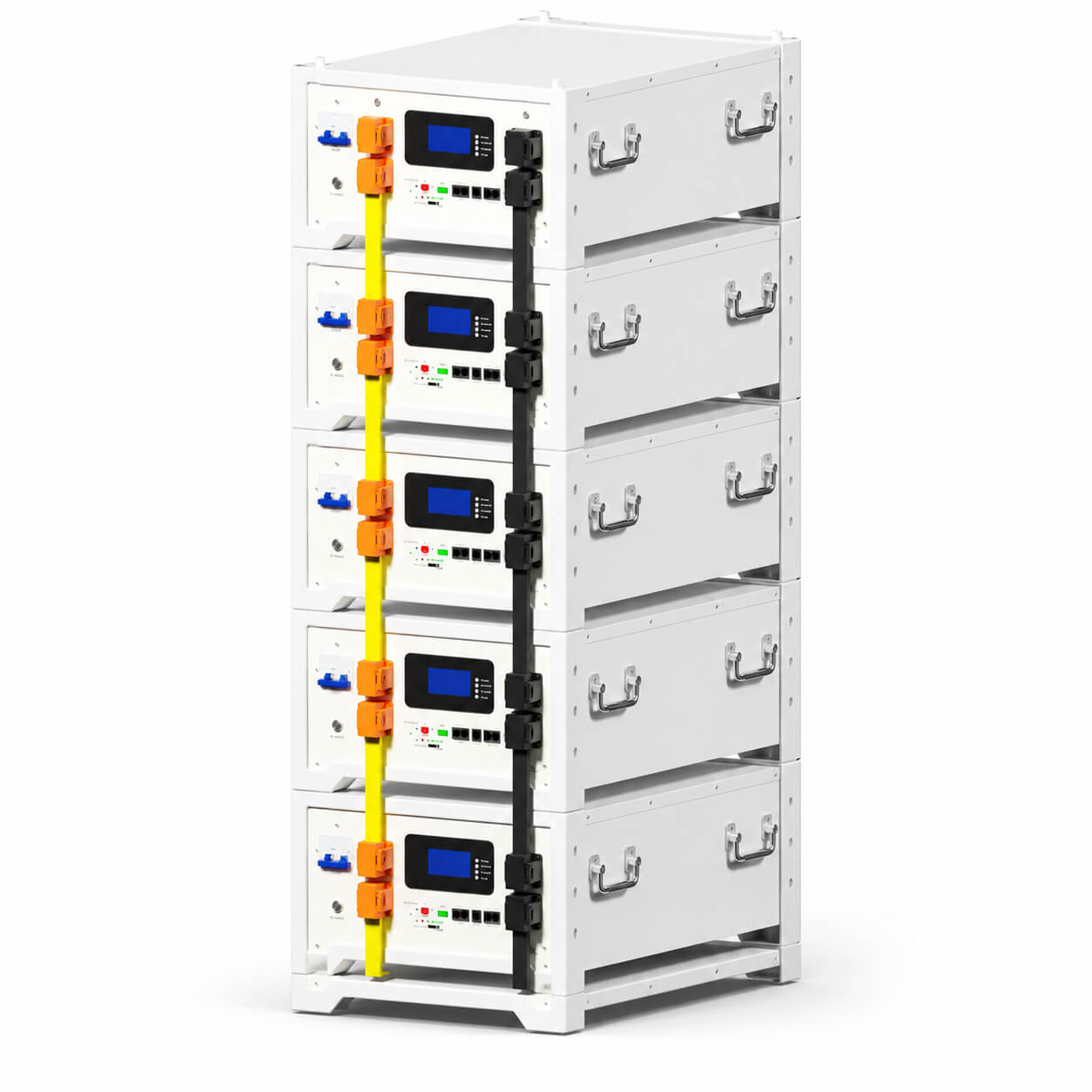

51.2V 314Ah LiFePO4 Battery | 16.08kWh Low Voltage Energy Storage System
The GLR-314 51.2V 314Ah LiFePO4 Battery is a modular low-voltage energy storage solution designed for residential, commercial and solar energy storage applications.
Each battery module provides 16.08kWh of usable energy capacity. Multiple battery modules can be connected in parallel to expand the system capacity up to 257.22kWh, providing flexible configuration for different energy storage requirements.
51.2V 314Ah LiFePO4 battery
16.08kWh energy per battery module
Modular and scalable battery design
System capacity up to 257.22kWh
Recommended charge/discharge current: 157A
6000+ cycle life at 90% DOD
Intelligent BMS protection
Supports RS485, RS232 and CAN
Compatible with major inverter brands
Design lifespan up to 15 years
Suitable for indoor energy storage applications
| Parameter | Specification |
|---|---|
| Model | GLR-314 |
| Battery Type | LiFePO4 |
| Rated Voltage | 51.2V |
| Rated Capacity | 314Ah |
| Rated Energy | 16.08kWh |
| Recommended Charging Current | 157A |
| Recommended Discharge Current | 157A |
| Module Dimensions | 838.5 × 478 × 278 mm |
| Module Weight | 125.8 kg |
| Multi-module Configuration | 2–16 Modules |
| System Energy | 32.15–257.22kWh |
| Operating Voltage Range | 44.8–57.6V |
| Communication | RS485 / RS232 / CAN |
| IP Rating | IP20 |
| Cycle Life | ＞6000 Cycles |
| Design Lifespan | 15 Years |
Residential Energy Storage / Commercial ESS / Solar PV Storage / Backup Power / Off-grid System / Peak Shaving
